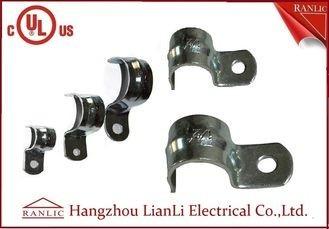

Electro Galvanized One Hole EMT Strap For Electrical EMT Conduit
1/2" to 4" UL Certified
UL File No.: E469927
General:
1) Electro galvanized emt straps with thickness from 0.80mm to
1.60mm
2) Five to eight inch also available if ordered, but none-UL
listed,the darcromat is the acid liquid testing more than 200 hours
dip
3) As the clamp for the electrical metal conduit
4) Corresponding Code: RL-610 (for emt conduit)……RL-610R (for imc &
rigid conduit) biggest size UL listed for imc and rigid conduit is
4", for emt conduit is 2"
5) Stainless material emt straps also available
Applications:
Used for tighting the emt conduit pipe to the mount place....
Each emt conduit generally use 3-6 pieces emt strap
Ranlic emt straps easy to fix on emt conduit,just clip on
Standard thickness is 1.2mm,but some also use 0.80mm
Characters & Dimension:
| ITEM CODE | MATERIAL | Name of Products | SIZE | USED FOR | UL LISTED NO. |
| RL-610 | Steel/Stainless | One hole emt strap | 1/2" | EMT Electrical Conduit | E469927 |
| RL-611 | Steel/Stainless | One hole emt strap | 3/4" | EMT Electrical Conduit | E469927 |
| RL-612 | Steel/Stainless | One hole emt strap | 1" | EMT Electrical Conduit | E469927 |
| RL-613 | Steel/Stainless | One hole emt strap | 1-1/4" | EMT Electrical Conduit | E469927 |
| RL-614 | Steel/Stainless | One hole emt strap | 1-1/2" | EMT Electrical Conduit | E469552 |
| RL-615 | Steel/Stainless | One hole emt strap | 2" | EMT Electrical Conduit | E469552 |
| RL-616 | Steel/Stainless | One hole emt strap | 2-1/2" | EMT Electrical Conduit | E469552 |
| RL-617 | Steel/Stainless | One hole emt strap | 3" | EMT Electrical Conduit | E469552 |
| RL-618 | Steel/Stainless | One hole emt strap | 3-1/2" | EMT Electrical Conduit | E469552 |
| RL-619 | Steel/Stainless | One hole emt strap | 4" | EMT Electrical Conduit | E469552 |
You may choose following RanLic other Conduit products:
EMT CONDUIT PIPE
IMC CONDUIT PIPE
RIGID CONDUIT PIPE
FLEXIBLE CONDUIT PIPE
LIQUID TIGHT FLEXIBLE CONDUIT
EMT connector(steel,zinc),
emt coupling(steel,zinc),
compression emt connector,
Compression emt coupling,
Squeez flexible connector(straight and angle),
Liquid tight connector(straight and angle),
Water tight hub
Romex connector
Conduit bushing
Service entrance cap
EMTstraps(one and two holes)
Strut clamp(for emt imc and rigid)
Beam clamp, emt elbow
Conduit hanger
Steel outlet box
EMT/IMC/RIGID conduit body
IMC/RIGID coupling,
steel and zinc locknut
emt imc rigid elbows
Clevis hangers
Springier hanger
conduit nipple
water proof terminal box
ETC................................
Why Choose Ranlic Conduit Item:
1) High quality material ensures a finish conduit and fittings with
superior properties
2) Manufactured by perfect molds and professtional engineer
3) Fitted perfectly with fittings(conduits) for the CNC threading
machine
4) 10 years export experience to make sure the perfect shipment
date and package
5) Always like to listening customers feedback for the conduit
arrived to
customer's warehouse to improving our service
Show Pictures:
