PVC Coated BS4568 GI Electrical Conduit 20mm 25mm Oringe Color
1.60mm
General
BS4568 Part 1:1970 BS EN BS EN 50086-1:1994 & BS EN 61386,Steel

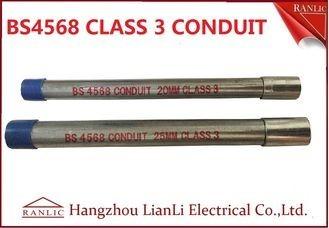

BS4568 G.I. conduit is manufactured from a mild steel tube,It has
an accurate circular cross section,a uniformand wall thickness,a
defect free interior surface.The finished threads,BS4568,conforms
to the,Each length of the conduit have the size,logo,product name
print or engraved to make as installation instructions
Features:
Q195 steel coil for mechanical strength,well controled internal
beads(all can remove as seamless) essential for wire pulling and
resistant to snagging The conduits are come with a coupler screwed
on one end and a protective plastic cap at the other ends to
prevent damage.Rigorous quality control procedures to ensure
process and product consistency
- Galvanized steel construction provides shielding from magnetic
fields and protection from impact damage and crushing
- Electroplated couplings prevent zinc build-up
- Designed for use with threaded connections
- Brand Name: RANLIC
- Length : 3.75 meters.
- Material : Galvanized steel-class 3 / Hot-dipped Galvanized-class 4
- Size: 3/4” , 1" , 1-1/4”
- Thickness: 1.3mm---1.6mm or according to customer's requirement
| Characteristics & Diamention | | | | | | |
| | | | | |
| NORMAL | ITEM No. | OUTSIDE DIAMETER | NORMAL | LENGTH W/O | NO. OF LGTHS | NO. OF BUNDLES | GAL. | WEIGHT |
| SIZE | MIN | MAX | THICKNESS | COUPLING | PER BUNDLE | PER LGTH | THICK | PER LGTH |
| 20mm | RL15-20-4 | 19.7mm | 20.0mm | 1.6±0.15mm | 3.75 meters | 10 | 10 | 40 micron | ±2.90kg |
| 25mm | RL15-25-4 | 24.6mm | 25.0mm | 1.6±0.15mm | 3.75 meters | 10 | 10 | 40 micron | ±3.70kg |
| 32mm | RL15-32-4 | 31.6mm | 32.0mm | 1.6±0.15mm | 3.75 meters | 10 | 10 | 40 micron | ±5.40kg |
| 38mm | RL15-38-4 | 37.6mm | 38.0mm | 1.8±0.15mm | 3.75 meters | 5 | 10 | 40 micron | ±6.35kg |
| 50mm | RL15-50-4 | 49.6mm | 50.0mm | 1.8±0.15mm | 3.75 meters | 5 | 10 | 40 micron | ±8.03kg |
| 63mm | RL15-63-4 | 62.5mm | 63.0mm | 2.1±0.15mm | 3.75 meters | 5 | 10 | 40 micron | ±11.83kg |
| 70mm | RL15-70-4 | 74.5mm | 74.0mm | 2.1±0.15mm | 3.75 meters | 5 | 10 | 40 micron | ±13.19kg |
Company Introduction:
Hangzhou Lianli Electrical Co.,Ltd. (Brand: RANLIC) as a
professional and specialized conduit products supplier. start in
our biz in 2007,we are in the city of Hangzhou,China, which is a
famous tourism city,only twenty mins to xiaoshan international
airport.Ranlic covers:
BS4568/BS31 GI conduit,Flexible gi and pvc coated conduit,flexible
conduit accessories,steel conduit fittings, malleable(aluminum)
circular box and related accessories available in this catalogue.
Ranlic in middle east,British,Australia,Malaysia,Singapore all the
british standard based countries have our exclusive sole agents,
products in more than 15 countries and regions in sale,With the
sales amount of more than 5 million U.S. dollars.
Relying on resonable prices,good quality and after service,we are
capable of manufacturing 6000 tons of steel conduit per year and
4000 tons of die casting and steel accessories annually, our
products have been expanded our markets to other areas according to
the local specification.Such as Japan,Africa. Our products nowadays
have been gone into many famous projects &export markets
worldwide.
Market is key point for our development, to survive we must face
the market pressure with continuous hard efforts and swift market
reflection. New way of development means higher standards of
requirement to us, We will still have tough job continue to do.We
would like to cooperated with our old and new customers to expand
our biz ,chrish our achievement right now,looking forwarder more
and more conduit related importers contacted with us.
